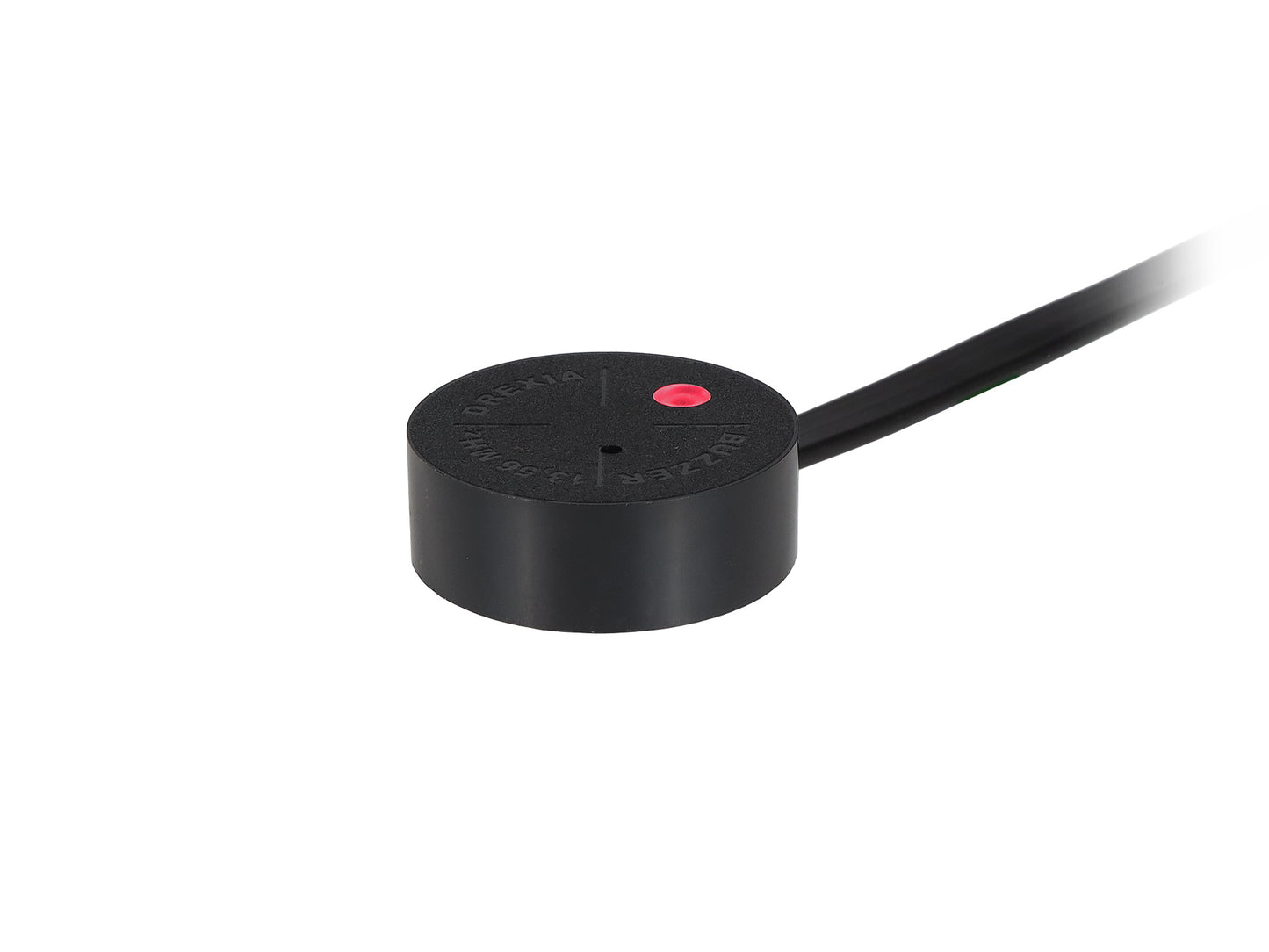

1-Wire RFID reader with bi-colour LED, 13.56 Mhz band, internal buzzer with side entry Cable | RF9092A06PBZ-13.56

1-Wire RFID reader with bi-colour LED, 13.56 Mhz band, internal buzzer with side entry Cable | RF9092A06PBZ-13.56

SKU: HC00415

£21.05
£21.05
Sale Sold out
Shipping calculated at checkout.

This 1-Wire RFID device reads the popular RFID tags running in the 13.56 Mhz band (ISO14443). Each tag has its own unique identification number, which is sent through 1-wire® bus by emulating a DS1990A iButton.

Features

  • Reads RFID tags running in the 13.56 MHz band
  • Data are sent by emulating a DS1990 iButton®
  • Plastic casing
  • Designed to be mounted with glue
  • Side entry of the flat wire
  • Standard wire ~40 cm
  • Bi-colour LED
  • Joining colours green and red creates orange
  • No series resistor required, simply connect LED cathode to GND

Applications

  • Cash registers
  • Vehicle/Driver ID
  • Time and attendance
  • Access control

Pinouts

 Yellow Power supply (6.5-30 volts DC)
Grey
 Ground
White 1-Wire Data
Green Cathode green LED
Red
 Cathode red LED
Blue Buzzer



Specification

Power supply 6.5-30 V DC
Active Current 15 mA (without LED)
Frequency 13,56 Mhz
Reading distance ~4 cm
LED Green/Red
Active Current LED 7mA per colour
Active Current Buzzer 50mA
