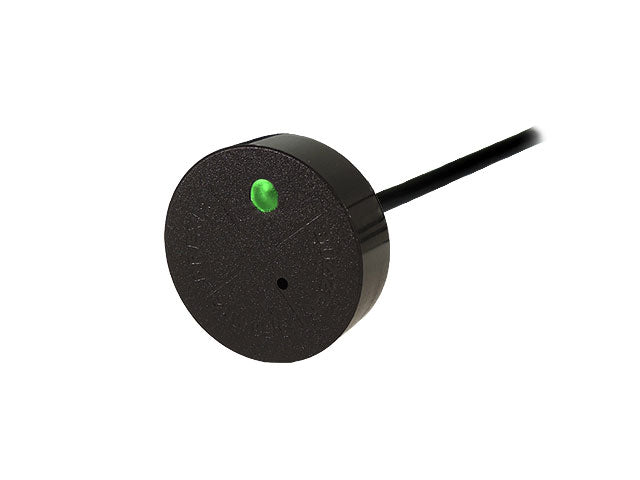

1-Wire RFID reader with bi-colour LED, 13.56 Mhz band, internal buzzer with 12mm Thread mount | RF9092A06M12BZ-13.56

1-Wire RFID reader with bi-colour LED, 13.56 Mhz band, internal buzzer with 12mm Thread mount | RF9092A06M12BZ-13.56

SKU: HC00413

Regular price £21.85
Regular price Sale price £21.85
Sale Sold out
Shipping calculated at checkout.

This 1-Wire RFID device reads RFID tags running in the 13.56 Mhz band (ISO14443). Each tag has its own unique identification number, which is sent through 1-wire® bus by emulating a DS1990A iButton®.

The colour of the cable may vary.

Features

  • Reads RFID tags running in the 13.56 MHz band
  • Data are sent by emulating a DS1990 iButton
  • Plastic casing
  • Standard wire ~40 cm
  • M*12 thread
  • Bi-colour LED
  • Joining colours green and red creates orange
  • No series resistor required, simply connect LED cathode to GND

Applications

  • Cash registers
  • Vehicle/Driver ID
  • Time and Attendance
  • Access control

Pinouts

 Yellow Power supply (6.5-30 volts DC)
Grey
Ground
White 1-Wire Data
Green Cathode green LED
Brown Cathode red LED



Specification

Power supply 6.5-30 V DC
Active Current 15 mA (without LED)
Frequency 13,56 Mhz
Reading distance ~4 cm
Bi-colour LED Green/Red
Active Current LED 7mA per colour
Active Current Buzzer 50 mA
Tags ISO14443
