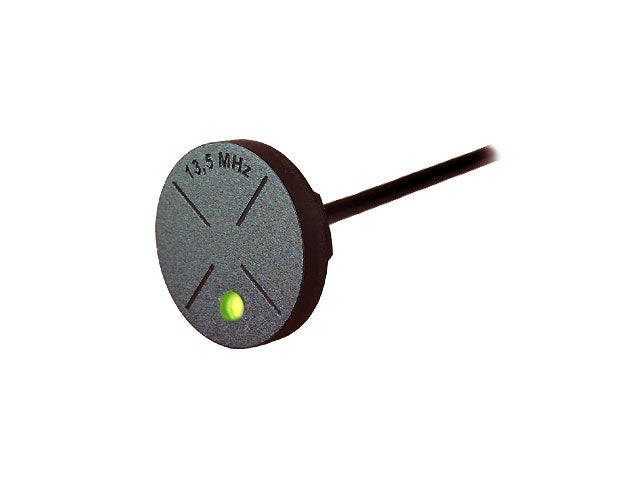

1-Wire® RFID reader with bi-colour LED, 13.56 Mhz band with 12mm Thread mount | RF9092K05M12-13.56

This RFID device reads RFID tags running in the 13.56 Mhz band (ISO14443). Each tag has its own unique identification number, which is sent through 1-wire® bus by emulating a DS1990A iButton®.

The colour of the cable may vary.

Features

• Reads RFID tags running in the 13.56 MHz band
• Data are sent by emulating a DS1990 iButton®
• Plastic casing
• Standard wire ~40 cm
• M*12 thread
• Bi-colour LED
• Common Cathode LED wiring
• Joining colours green and red creats orange
• No series resistor required, simply connect LED anode to the plus, e.g. the power supply (** please check notes below)

** Caution
In case of connecting anode to the supply higher than 5V it is advisable to use an external resistor preventing from exceeding the maximum current suitable for LED.

Applications

• Cash registers
• Vehicle/Driver ID
• Time and attendance
• Access control

Pinouts

Specification
