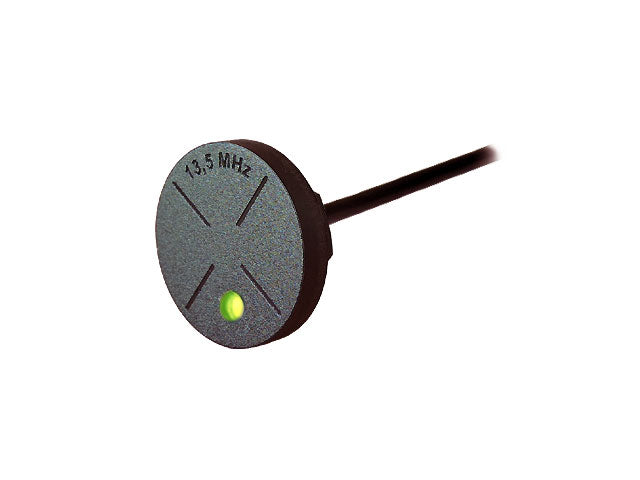

1-Wire RFID reader with bi-colour LED, 13.56 Mhz band & Common Cathode | RF9092K05-13.56

1-Wire RFID reader with bi-colour LED, 13.56 Mhz band & Common Cathode | RF9092K05-13.56

SKU: RF9092K05-13.56

Regular price £17.20
Regular price Sale price £17.20
Sale Sold out
Shipping calculated at checkout.

This RFID device reads RFID tags running in the 13.56 Mhz band (ISO14443). Each tag has its own unique identification number, which is sent through 1-wire® bus by emulating a DS1990A iButton®.

The colour of the cable may vary.

Features

  • Reads RFID tags running in the 13.56 MHz band
  • Data are sent by emulating a DS1990 iButton®
  • Plastic casing
  • Designed to be mounted double sided sticky Tape
  • Standard wire ~40 cm
  • Bi-colour LED
  • Joining colours green and red creates orange
  • No series resistor required, simply connect LED anode to the plus, e.g. the power supply (** please check notes below)

** Caution
In case of connecting anode to the supply higher than 5V it is advisable to use an external resistor preventing from exceeding the maximum current suitable for LED.

Applications

  • Cash registers
  • Time and attendance
  • Access control

Pinouts

 Yellow Power supply (6.5-30 volts DC)
Grey
Ground
White 1-Wire Data
Green Anode green LED
Brown Anode red LED





Specification

Power supply 6.5-30 V DC
Active Current ~50 mA (without LED)
Frequency 13,56 Mhz
Reading distance ~4 cm
LED Green/Red
Active Current LED 7mA per colour
Tags ISO14443
