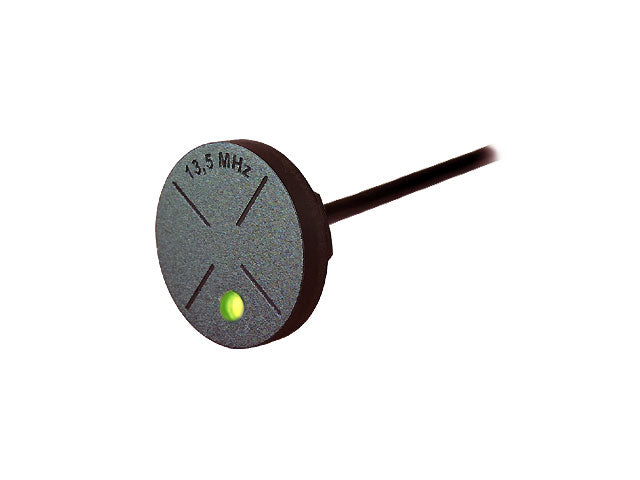

1-Wire® RFID reader with bi-colour LED, 13.56 Mhz band | RF9092A05-13.56

1-Wire® RFID reader with bi-colour LED, 13.56 Mhz band | RF9092A05-13.56

SKU: HC00318

£17.20
£17.20
Sale Sold out
Shipping calculated at checkout.

This RFID device reads RFID tags running in the 13.56 Mhz band (ISO14443). Each tag has its own unique identification number, which is sent through 1-wire® bus by emulating a DS1990A iButton®.

The colour of the cable may vary.

Features

  • Reads RFID tags running in the 13.56 MHz band
  • Data are sent by emulating a DS1990 iButton®
  • Plastic casing
  • Designed to be mounted with double sided Tape
  • Standard wire ~40 cm
  • Bi-colour LED
  • Joining colours green and red we creates orange
  • No series resistor required, simply connect LED cathode to GND

Applications

  • Cash registers
  • Vehicle/Driver ID
  • Time and attendance
  • Access control

Pinouts

 Yellow Power supply (6.5-30 volts DC)
Grey
 Ground
White 1-Wire Data
Green Anode green LED
Brown Anode red LED



Specification

Power supply 6.5-30 V DC
Active Current ~50 mA (without LED)
Frequency 13,56 Mhz
Reading distance ~4 cm
LED Green/Red
Active Current LED 7mA per colour
Tags ISO14443
