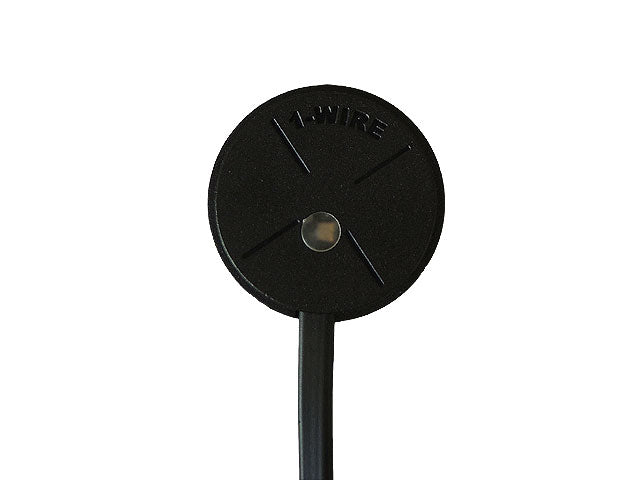

• RF9092A04P-125 | RFID reader with single Red LED, 125 kHz band with Side Entry Cable
  • RF9092A04P-125 | RFID reader with single Red LED, 125 kHz band with Side Entry Cable
1 2

1-Wire® RFID reader with single LED, 125 kHz band | RF9092A04P-125

1-Wire® RFID reader with single LED, 125 kHz band | RF9092A04P-125

SKU: HC00352

£13.92
£13.92
Sale Sold out
Shipping calculated at checkout.

This RFID device reads the popular RFID tags running in the 125 kHz band (Manchester coding). Each tag has its own unique identification number, which is through 1wire® bus by emulating a DS1990 iButton®

Features

  • Reads RFID tags running in the 125 kHz band
  • Data are sent by emulating a DS1990 iButton®/ Dallas Keys
  • Plastic casing
  • Designed to be mounted with double sided tape
  • Side-conduction of the flat wire
  • Standard wire ~40 cm
  • No series resistor required, simply connect LED anode to GND

Applications

  • Electronic Point of Sale/Tills
  • Vehicle/Driver ID
  • Time and Attendance
  • Access control

Pinouts

Red Power supply (6.5-30 volts DC)
Black Ground
White 1-Wire Data
Green Cathode LED



Specification

Power supply 6.5-30 V DC
Active Current 12mA (without LED)
Frequency 125 kHz
Reading distance ~4 cm
LED Red
Active Current LED 10mA
