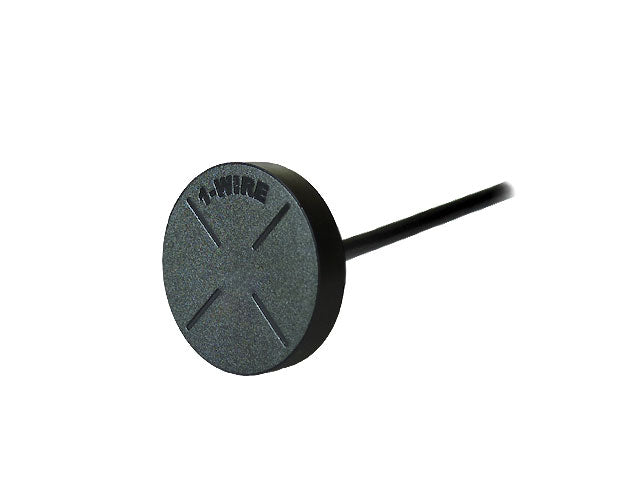

1-Wire® RFID reader without LED, 125 kHz band | RF909203-125

1-Wire® RFID reader without LED, 125 kHz band | RF909203-125

SKU: HC00317

£13.92
£13.92
Sale Sold out
Shipping calculated at checkout.

This RFID device reads the popular RFID tags running in the 125 kHz band (Manchester coding). Each tag has its own unique identification number, which is sent through 1-wire bus by emulating a DS1990A iButton®

Features

  • Reads RFID tags running in the 125 kHz band
  • Data sent by emulating a DS1990 iButton®
  • Plastic casing
  • Designed to be mounted with double sided tape
  • Standard wire ~40 cm

Applications

  • Cash registers
  • Vehicle/Driver ID Telematics
  • Time and attendance
  • Access control

Pinouts

Brown
 Power supply (6.5-30 volts DC)
Green
 Ground
White 1-Wire Data


Specification

Power supply 6.5-30 V DC
Active Current 12 mA
Frequency 125 KHz
Reading distance ~4 cm
