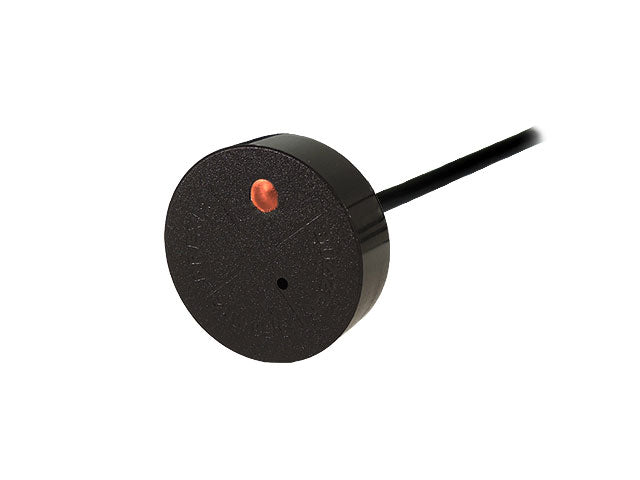

• RF9092A06M12BZ-125 | 1-Wire RFID reader with bi-colour LED, 125 kHz band with 12mm Thread Mount
  • RF9092A06M12BZ-125 | 1-Wire RFID reader with bi-colour LED, 125 kHz band with 12mm Thread Mount
  • RF9092A06M12BZ-125 | 1-Wire RFID reader with bi-colour LED, 125 kHz band with 12mm Thread Mount
1 3

1-Wire RFID reader with bi-colour LED, 125 kHz band with 12mm Thread Mount | RF9092A06M12BZ-125

1-Wire RFID reader with bi-colour LED, 125 kHz band with 12mm Thread Mount | RF9092A06M12BZ-125

SKU: HC00479

£18.05
£18.05
Sale Sold out
Shipping calculated at checkout.

This 1-Wire RFID device reads the popular RFID tags running in the 125 kHz band (Manchester coding). Each tag has its own unique identification number, which is sent through 1-wire® bus by emulating a DS1990A iButton®.

Features

  • Reads RFID tags running in the 125 kHz band
  • Data are sent by emulating a DS1990 iButton®
  • Plastic casing
  • Standard wire ~40 cm
  • M*12 thread
  • Bi-color LED
  • Internal buzzer
  • Joining colors green and red creates orange
  • no series resistor required, simply connect LED cathode to GND

Applications

  • Cash registers
  • Vehicle/Driver ID
  • Time and Attendance
  • Access control

Pinouts

 Yellow Power supply (6.5-30 volts DC)
Black
 Ground
White 1-Wire Data
Green Cathode green LED
Brown Cathode red LED
Pink Buzzer



Specification

Power supply 6.5-30 V DC
Active Current 12 mA (without LED)
Frequency 125 kHz
Reading distance ~4 cm
LED Green/Red
Active Current LED 10mA per colour
Active Current Buzzer  50 mA
