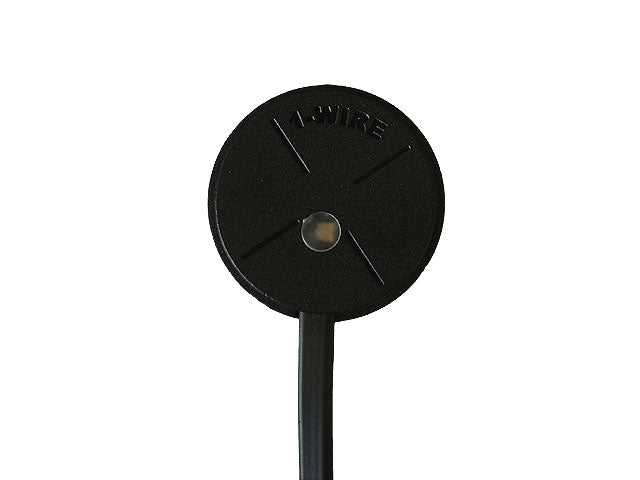

1-Wire RFID reader with LED, Common Cathode & 125 kHz band with side entry Cable | RF9092K04P-125

1-Wire RFID reader with LED, Common Cathode & 125 kHz band with side entry Cable | RF9092K04P-125

SKU: HC00352K

Regular price £13.92
Regular price Sale price £13.92
Sale Sold out
Shipping calculated at checkout.

This RFID device reads the popular RFID tags running in the 125 kHz band (Manchester coding). Each tag has its own unique identification number, which is sent through 1-wire® bus by emulating a DS1990A iButton®.

Features

  • Reads RFID tags running in the 125 kHz band
  • Data are sent by emulating a DS1990 iButton®
  • Plastic casing
  • Designed to be mounted with glue
  • Side entry of the flat wire
  • Standard wire ~40 cm
  • No series resistor required, simply connect LED anode to the plus, e.g. the power supply (** please check notes below)

** Caution
In case of connecting anode to the supply higher than 5V it is advisable to use an external resistor preventing from exceeding the maximum current suitable for LED.

Applications

  • Cash registers
  • Vehicle/Driver ID
  • Time and attendance
  • Access control

Pinouts

 Red Power supply (6.5-30 volts DC)
Black Ground
White 1-Wire Data
Green Cathode LED



Specification

Power supply 6.5-30 V DC
Active Current 12 mA (without LED)
Frequency 125 kHz
Reading distance ~4 cm
LED Red
Active Current LED 10mA
