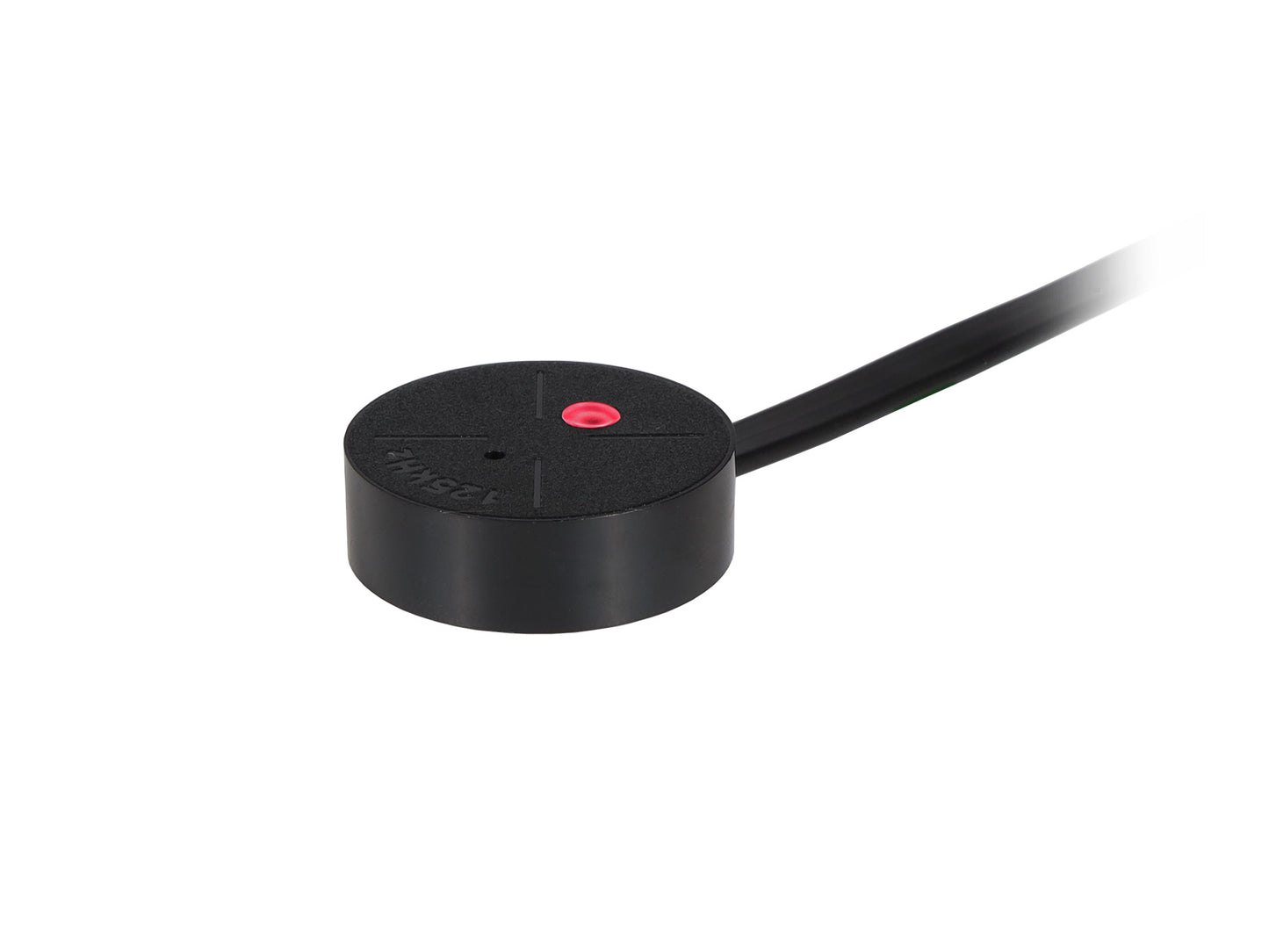

1-Wire RFID reader with bi-colour LED, 125 kHz band Side entry Cable and Buzzer | RF9092A06PBZ-125

1-Wire RFID reader with bi-colour LED, 125 kHz band Side entry Cable and Buzzer | RF9092A06PBZ-125

SKU: HC00393

£18.05
£18.05
Sale Sold out
Shipping calculated at checkout.

This RFID device reads the popular RFID tags running in the 125 kHz band (Manchester coding). Each tag has its own unique identification number, which is sent through 1-wire® bus by emulating a DS1990A iButton®.

Features

  • Reads RFID tags running in the 125 kHz band
  • Data are sent by emulating a DS1990 iButton®
  • Plastic casing
  • Standard wire ~40 cm
  • Side entry of the flat wire
  • Designed to be mounted with double sided sticky Tape
  • Bi-color LED
  • Internal buzzer
  • Joining colors green and red we get orange
  • No series resistor required, simply connect LED cathode to GND

Applications

  • Cash registers
  • Vehicle/Driver ID
  • Time and attendance
  • Access control

Pinouts

 Yellow Power supply (6.5-30 volts DC)
Black
 Ground
White 1-Wire Data
Green Cathode green LED
Red
 Cathode red LED
Blue
 Buzzer



Specification

Power supply 6.5-30 V DC
Active Current 12 mA (without LED)
Frequency 125 kHz
Reading distance ~4 cm
Bi-colour LED Green/Red
Active Current LED 10 mA per colour
Active Current Buzzer 50mA
