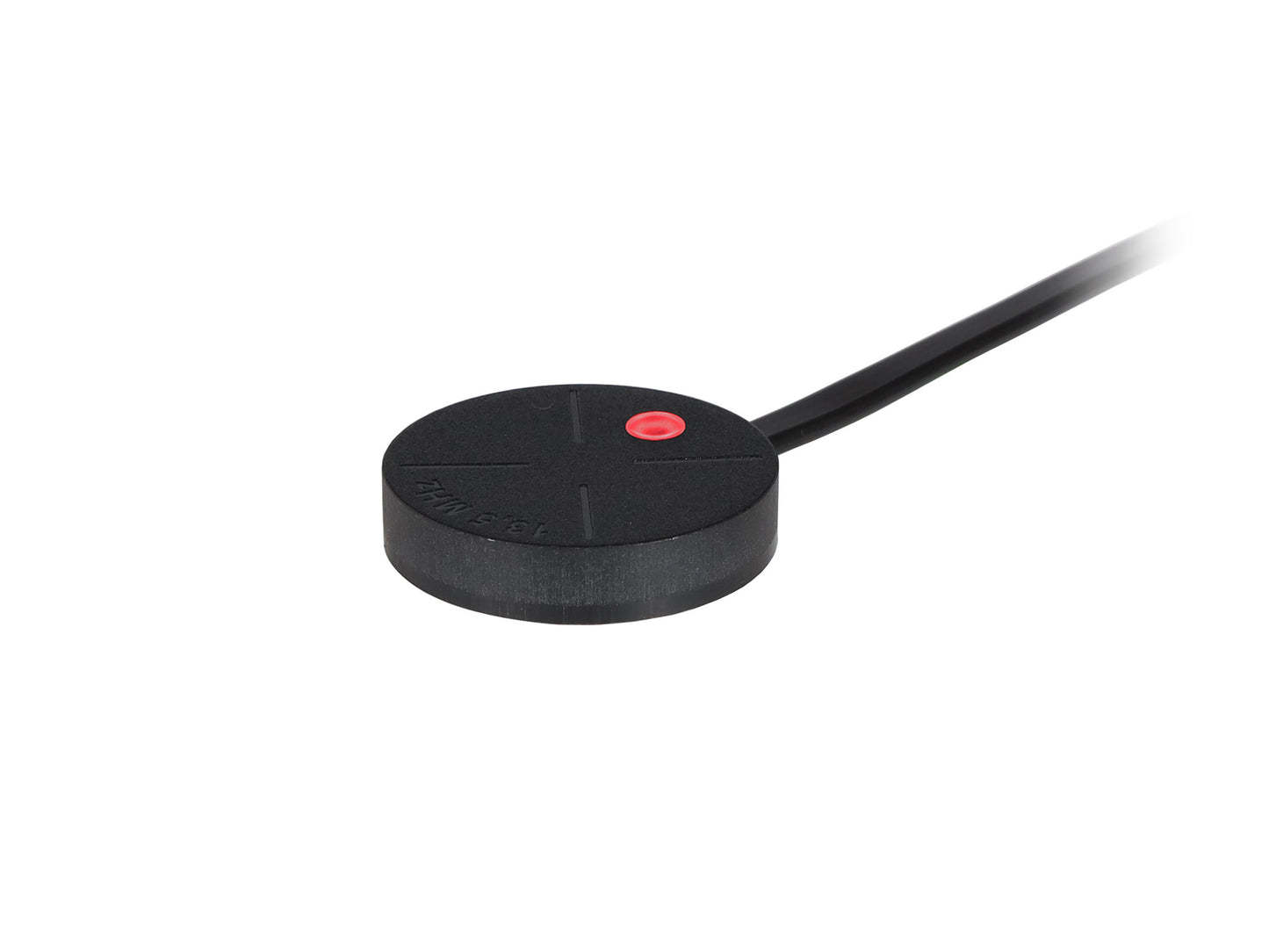

1-Wire RFID reader with LED, 13.56 MHz band with side entry Cable | RF9092A04P-13.56

1-Wire RFID reader with LED, 13.56 MHz band with side entry Cable | RF9092A04P-13.56

SKU: HC00473

£17.20
£17.20
Sale Sold out
Shipping calculated at checkout.

This RFID device reads the popular RFID tags running in the 13.56 Mhz band (ISO14443). Each tag has its own unique identification number, which is sent through 1-wire bus by emulating a DS1990A iButton®.

Features

  • Reads RFID tags running in the 13.56 MHz band
  • Data are sent by emulating a DS1990 iButton®
  • Plastic casing
  • Designed to be mounted with double sided sticky Tape
  • Side-conduction of the flat wire
  • Standard wire ~40 cm
  • No series resistor required, simply connect LED cathode to GND

Applications

  • Cash registers
  • Vehicle/Driver ID
  • Time and attendance
  • Access control

Pinouts

Red
 Power supply (6.5-30 volts DC)
Black
 Ground
White 1-Wire Data
Green Cathode LED



Specification

Power supply 6.5-30 V DC
Active Current 15 mA (without LED)
Frequency 13,56 Mhz
Reading distance ~4 cm
LED Red
Active Current LED 7mA
